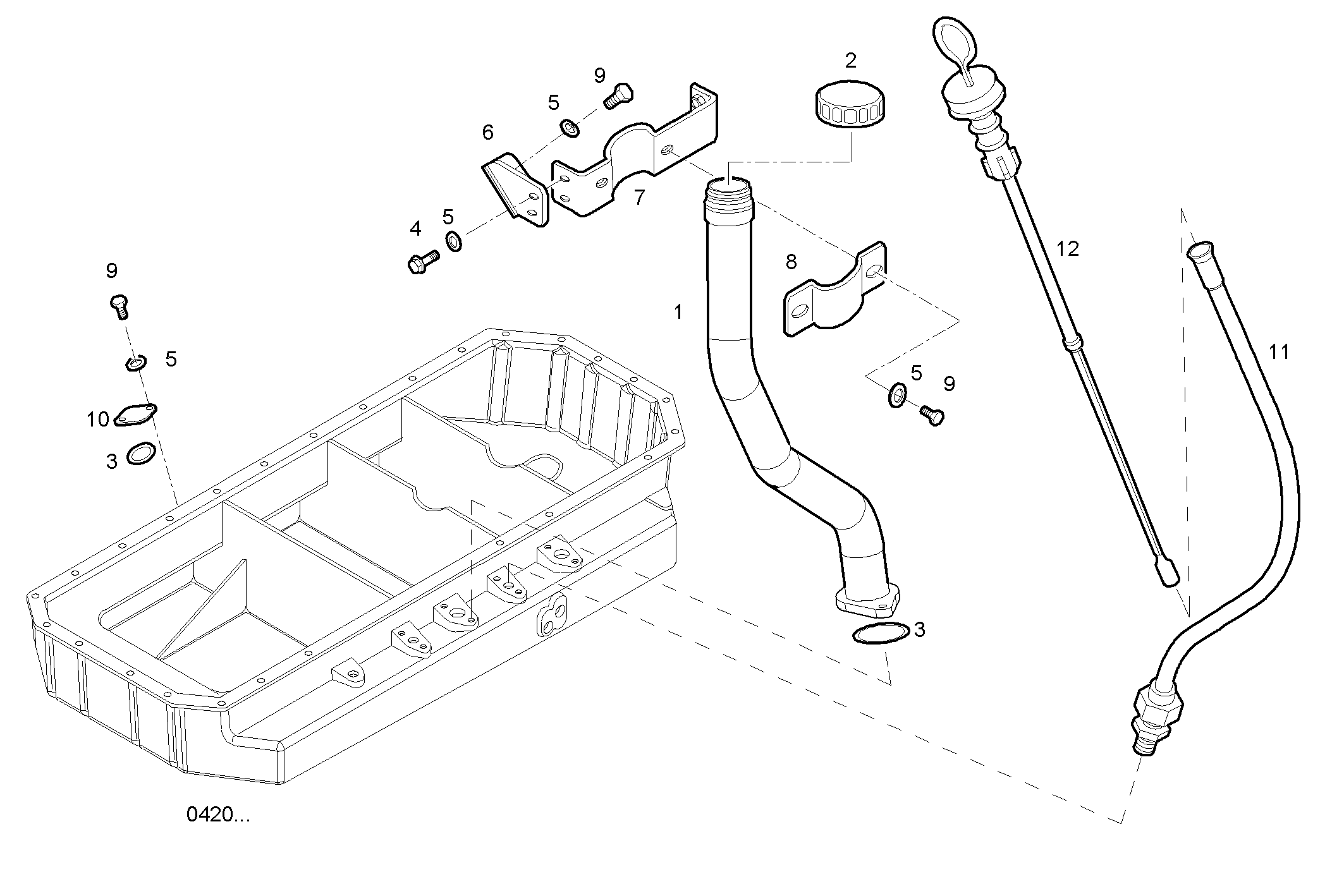

OIL DIPSTICK & FILLER PIPE
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8043087 | OIL FILLER PIPE OIL FILLER PIPE | 1 | |
| 2 | 98429552 | OIL FILLER PLUG OIL FILLER PLUG | 1 | |
| 3 | 17289881 | O-RING O-RING | 2 | |
| 4 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 6 | 8041233 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 7 | 8043174 | RETAINER RETAINER | 1 | |
| 8 | 8043185 | RETAINER RETAINER | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 10 | 8041327 | FLANGE FLANGE | 1 | |
| 11 | 504204533 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 12 | 504204534 | OIL DIPSTICK OIL DIPSTICK | 1 |
