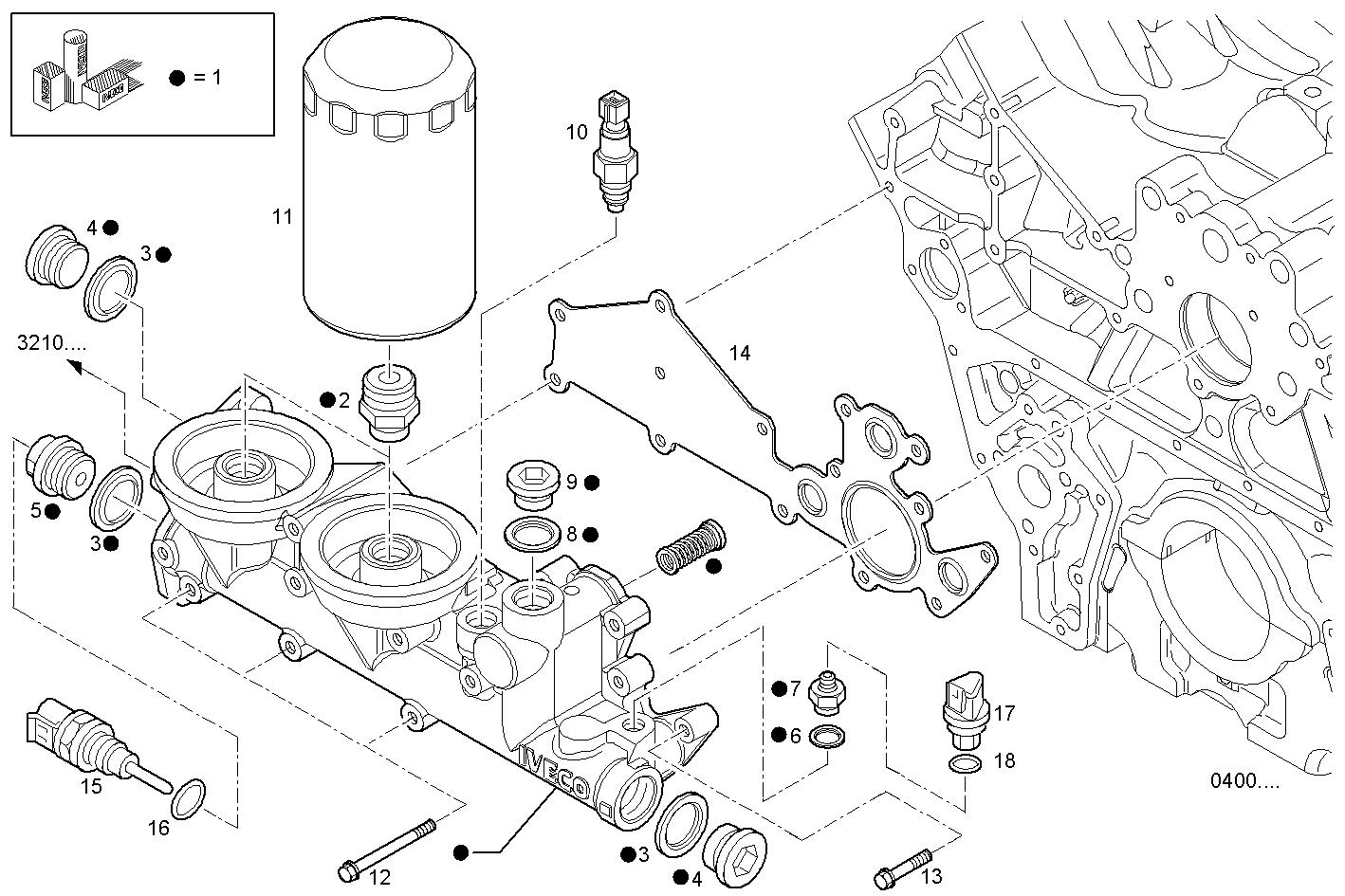

OIL FILTERS
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504046229 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 2 | 504045113 | THREADED UNION THREADED UNION | 2 | |
| 3 | 99469380 | SEAL GASKET SEAL GASKET | 3 | |
| 4 | 16993715 | THREADED PLUG THREADED PLUG | 2 | |
| 5 | 504046492 | THREADED UNION THREADED UNION | 1 | |
| 6 | 99489019 | WASHER WASHER | 1 | |
| 7 | 504044568 | THREADED UNION THREADED UNION | 1 | |
| 8 | 99432291 | SEAL GASKET SEAL GASKET | 1 | |
| 9 | 16993515 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 500351609 | SENSOR SENSOR | 1 | |
| 11 | 504067504 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 2 | |
| 12 | 16598324 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 13 | 16586625 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 14 | 504044305 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 504046224 | TEMP. TRANSMITTER TEMP. TRANSMITTER | 1 | |
| 16 | 504046225 | SEAL GASKET SEAL GASKET | 1 | |
| 17 | 504046223 | SENSOR SENSOR | 1 | |
| 18 | 504046227 | SEAL GASKET SEAL GASKET | 1 |
