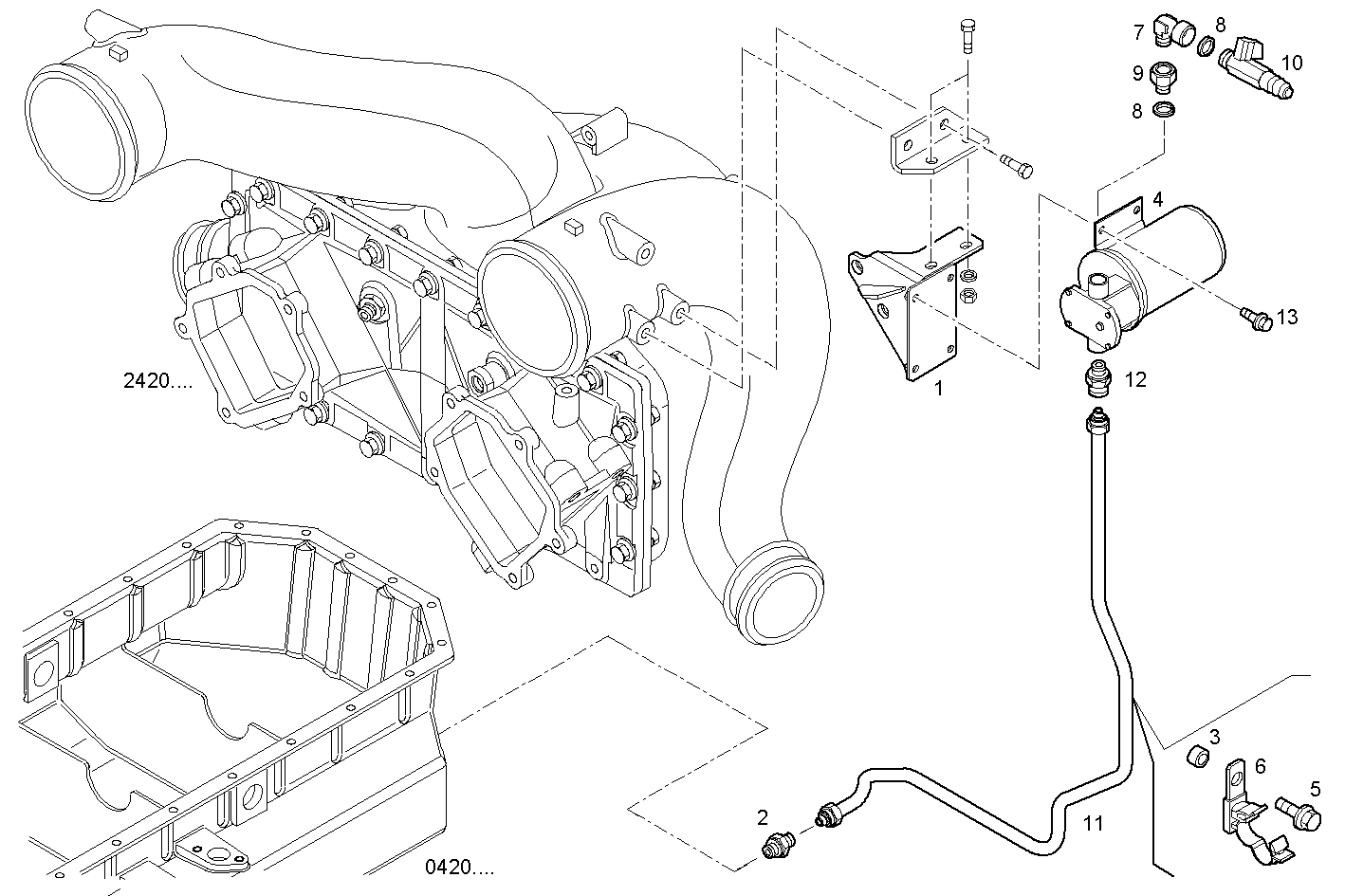

OIL OUTLET PUMP
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504204544 | SUPPORT SUPPORT | 1 | |
| 2 | 41031572 | THREADED UNION THREADED UNION | 1 | |
| 3 | 98479318 | SPACING BAR SPACING BAR | 1 | |
| 4 | 8032366 | OIL DRAIN ELECTRIC PUMP OIL DRAIN ELECTRIC PUMP | 1 | |
| 5 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 99453771 | RETAINER RETAINER | 1 | |
| 7 | 8005303 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 11270460 | GASKET GASKET | 2 | |
| 9 | 8034440 | THREADED UNION THREADED UNION | 1 | |
| 10 | 8113932 | DRAIN COCK DRAIN COCK | 1 | |
| 11 | 504204546 | OIL SUCTION PIPE OIL SUCTION PIPE | 1 | |
| 12 | 8011422 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 4 |
