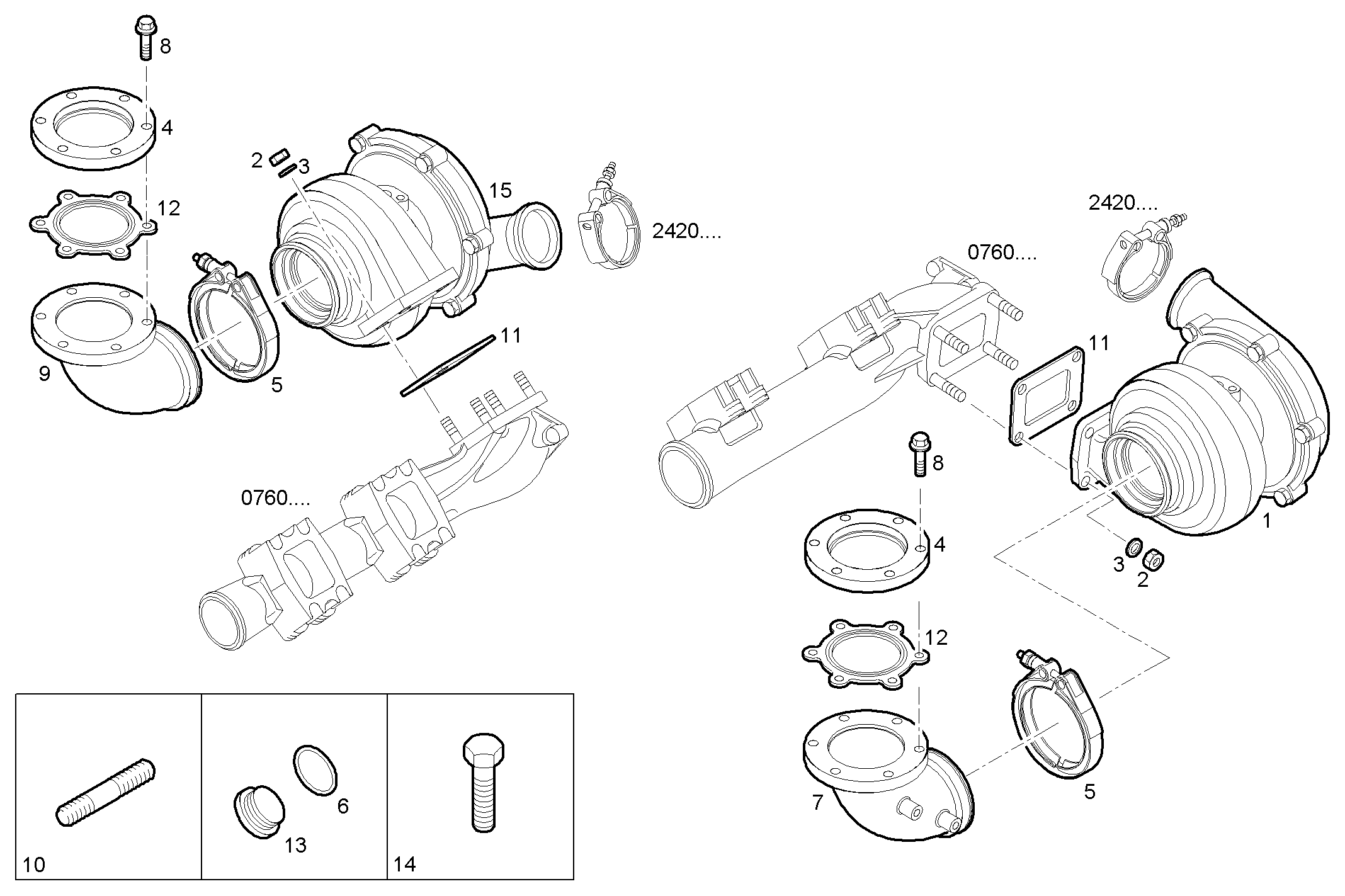

TURBOCHARGER
FVAE2884AB201 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504193328 | TURBOCHARGER TURBOCHARGER | 1 | |
| 2 | 500300795 | HEXAGON NUT HEXAGON NUT | 8 | |
| 3 | 17095024 | SPRING WASHER SPRING WASHER | 8 | |
| 4 | 504135410 | FLANGE FLANGE | 2 | |
| 5 | 500339542 | PIPE CLIP PIPE CLIP | 2 | |
| 6 | 99489018 | SEAL GASKET SEAL GASKET | 8 | |
| 7 | 504225247 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 8 | 99453959 | SCREW SCREW | 12 | |
| 9 | 504225720 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 10 | 16729434 | STUD STUD | 4 | |
| 11 | 504103435 | GASKET GASKET | 2 | |
| 12 | 500387050 | GASKET GASKET | 2 | |
| 13 | 16992315 | THREADED PLUG THREADED PLUG | 4 | |
| 14 | 16586577 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 504193327 | TURBOCHARGER TURBOCHARGER | 1 |
