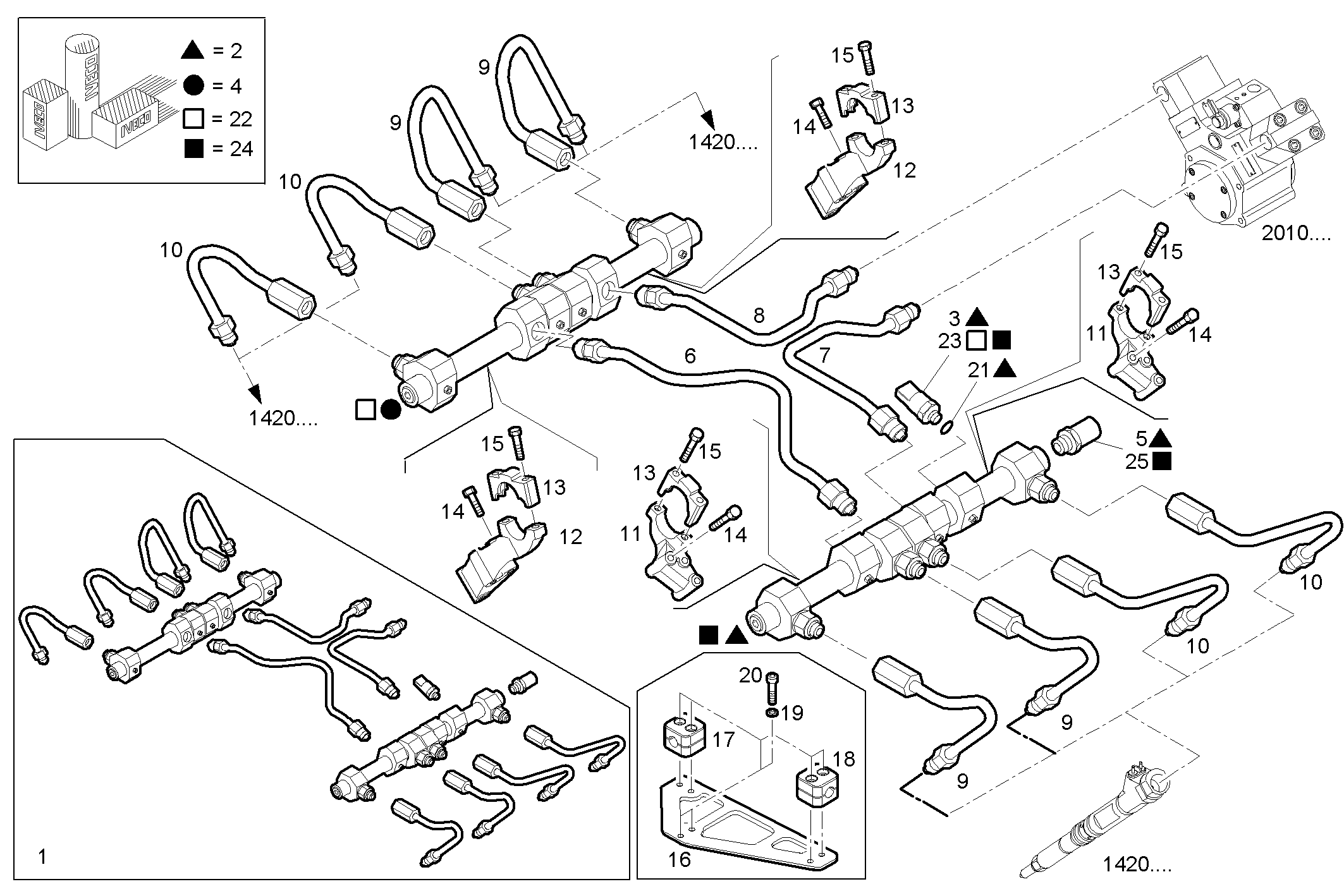

FUEL LINES
FVAE2885X*A100 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504037516 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 1 | 504215520 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 504215523 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 3 | 504043154 | SENSOR SENSOR | 1 | |
| 4 | 504215527 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 5 | 504043158 | VALVE VALVE | 1 | |
| 6 | 504037522 | FUEL LINE FUEL LINE | 1 | |
| 6 | 504215534 | FUEL LINE FUEL LINE | 1 | |
| 7 | 504037523 | FUEL LINE FUEL LINE | 1 | |
| 7 | 504215535 | FUEL LINE FUEL LINE | 1 | |
| 8 | 504037521 | FUEL LINE FUEL LINE | 1 | |
| 8 | 504215536 | FUEL LINE FUEL LINE | 1 | |
| 9 | 504037519 | FUEL LINE FUEL LINE | 4 | |
| 9 | 504215530 | FUEL LINE FUEL LINE | 4 | |
| 10 | 504037520 | FUEL LINE FUEL LINE | 4 | |
| 10 | 504215533 | FUEL LINE FUEL LINE | 4 | |
| 11 | 504080479 | SUPPORT SUPPORT | 2 | |
| 12 | 504080488 | SUPPORT SUPPORT | 2 | |
| 13 | 504039185 | COVER COVER | 4 | |
| 14 | 16586925 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 15 | 16586725 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 16 | 504097534 | SUPPORT SUPPORT | 1 | |
| 17 | 504097548 | CHOCK CHOCK | 1 | |
| 18 | 504097549 | CHOCK CHOCK | 2 | |
| 19 | 17094611 | WASHER WASHER | 6 | |
| 20 | 16689425 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 6 | |
| 21 | 504120835 | SEAL GASKET SEAL GASKET | 1 | |
| 22 | 504043162 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 23 | 504043154 | SENSOR SENSOR | 2 | |
| 24 | 504043151 | HYDRAULIC CYLINDER HYDRAULIC CYLINDER | 1 | |
| 25 | 504043158 | VALVE VALVE | 1 |
