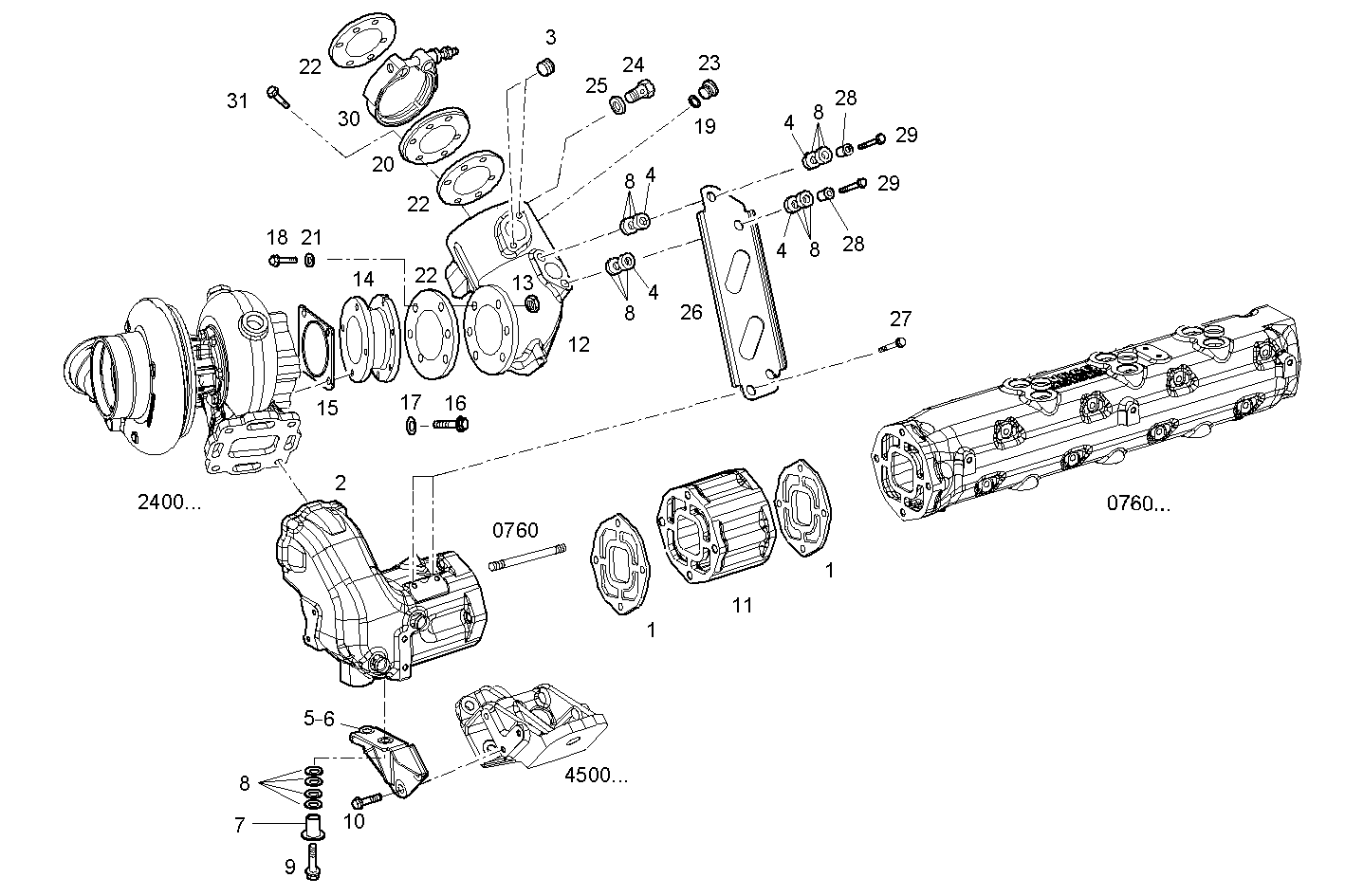

SUPERCHARGING LINES

V08ENTM11.10R210 — VECTOR 8

Parts List

#	Part No	Name / Description	Qty
1	8042414	EXH. MANIFOLD GKT EXH. MANIFOLD GKT	3
2	8042415	EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW	2
3	17873271	THREADED INSERT THREADED INSERT	44
4	17095224	WASHER WASHER	8
5	8043057	FASTENING BRACKET FASTENING BRACKET	1
6	8043088	FASTENING BRACKET FASTENING BRACKET	1
7	8110050	BUSH BUSH	4
8	8110051	SPRING SPRING	48
9	16587425	HEXAGON BOLT HEXAGON BOLT	4
10	16587125	HEXAGON BOLT HEXAGON BOLT	6
11	8042418	SPACING BAR SPACING BAR	1
12	8043293	EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW	2
13	17308831	LOCKING NUT LOCKING NUT	8
14	8043295	SPACING BAR SPACING BAR	2
15	8039361	FLAT ENGINE GKT FLAT ENGINE GKT	2
16	17456634	LOCKING SCREW LOCKING SCREW	8
17	16665614	WASHER WASHER	8
18	17455234	HEXAGON BOLT HEXAGON BOLT	12
19	99489019	WASHER WASHER	2
20	8040247	FLANGE FLANGE	2
21	16666724	WASHER WASHER	12
22	8009600	GASKET GASKET	4
23	16992411	THREADED PLUG THREADED PLUG	2
24	16500114	THREADED UNION THREADED UNION	2
25	99489017	SEAL GASKET SEAL GASKET	2
26	8042744	FASTENING BRACKET FASTENING BRACKET	2
27	16673735	HEXAGON BOLT HEXAGON BOLT	4
28	8042748	SPACING BAR SPACING BAR	4
29	16586625	HEXAGON BOLT HEXAGON BOLT	4
30	8040248	CLIP CLIP	2
31	16690824	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	12
