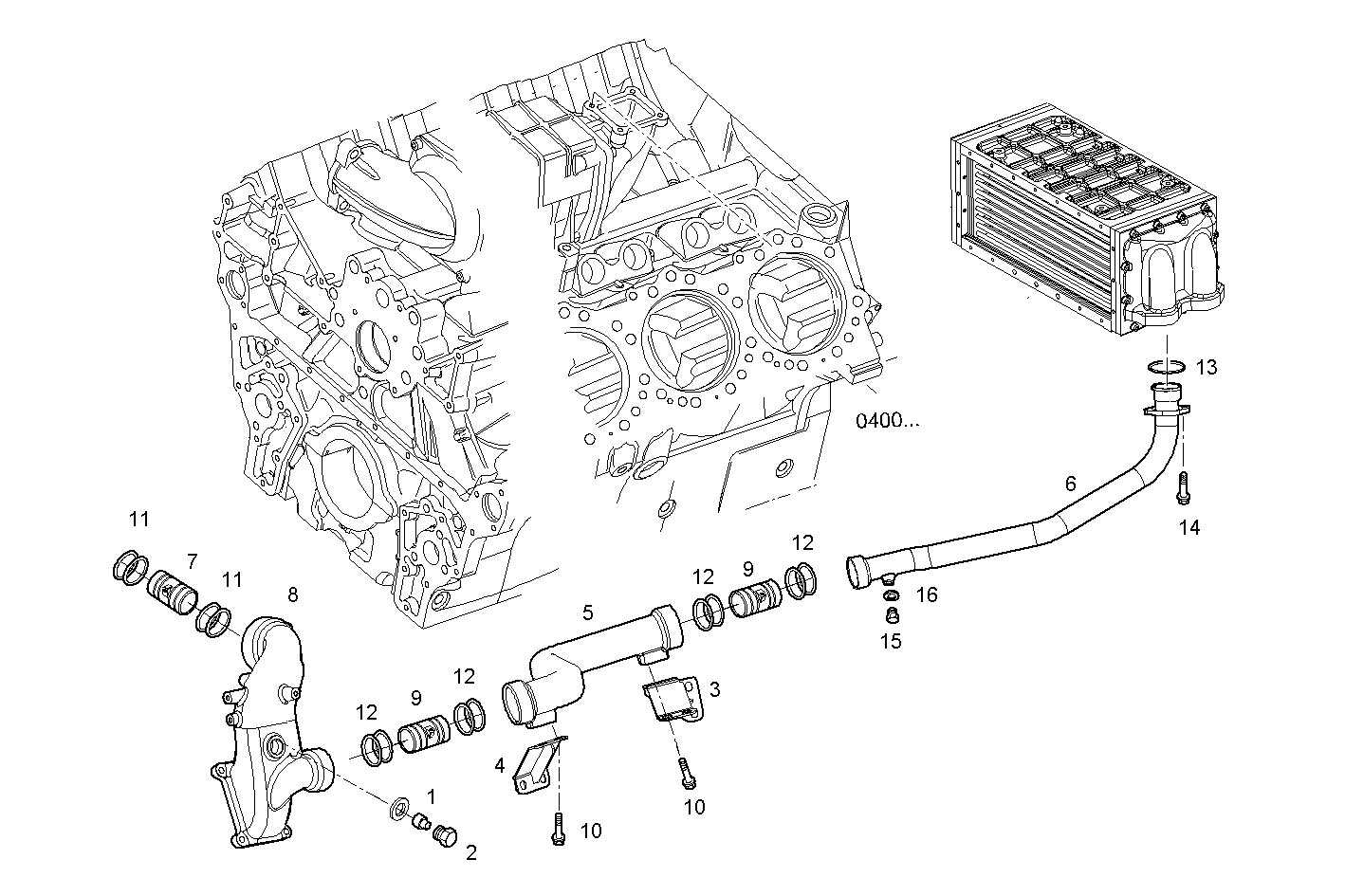

SEA WATER LINES
V08ENTM12.10A210 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 2 | 8101771 | PLUG PLUG | 1 | |
| 3 | 8040808 | RETAINER RETAINER | 1 | |
| 4 | 8040804 | RETAINER RETAINER | 1 | |
| 5 | 8040803 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 6 | 8040215 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 7 | 8039306 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 8 | 8039305 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 9 | 8029811 | SPACING BAR SPACING BAR | 2 | |
| 10 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 11 | 17290781 | O-RING O-RING | 4 | |
| 12 | 17289981 | O-RING O-RING | 8 | |
| 13 | 17289881 | O-RING O-RING | 8 | |
| 14 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 2 |
