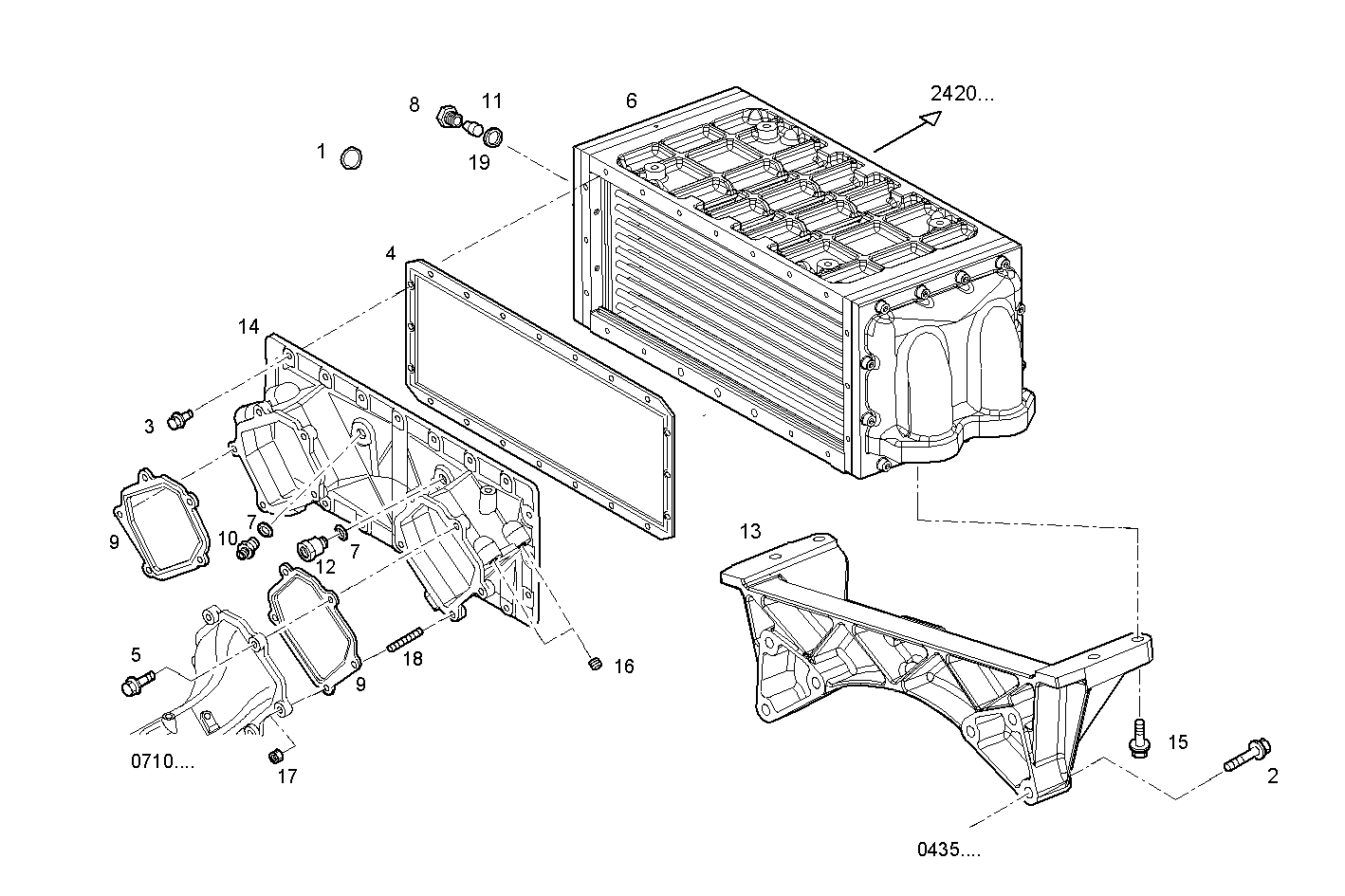

AIR - WATER HEAT EXCHANGER
V08ENTM75.10A210 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504046227 | SEAL GASKET SEAL GASKET | 1 | |
| 2 | 16587825 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 3 | 504049512 | HEXAGON BOLT HEXAGON BOLT | 17 | |
| 4 | 504044894 | GASKET GASKET | 1 | |
| 5 | 504049513 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 6 | 8041720 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 7 | 99489019 | WASHER WASHER | 2 | |
| 8 | 8101771 | PLUG PLUG | 1 | |
| 9 | 504048947 | GASKET GASKET | 2 | |
| 10 | 504044568 | THREADED UNION THREADED UNION | 1 | |
| 11 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 12 | 504044567 | THREADED UNION THREADED UNION | 1 | |
| 13 | 504071590 | SUPPORT SUPPORT | 1 | |
| 14 | 504074096 | AIR HOOD AIR HOOD | 1 | |
| 15 | 16587325 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 17847870 | THREADED INSERT THREADED INSERT | 11 | |
| 17 | 17044725 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 16729424 | STUD STUD | 4 | |
| 19 | 99432291 | SEAL GASKET SEAL GASKET | 1 |
