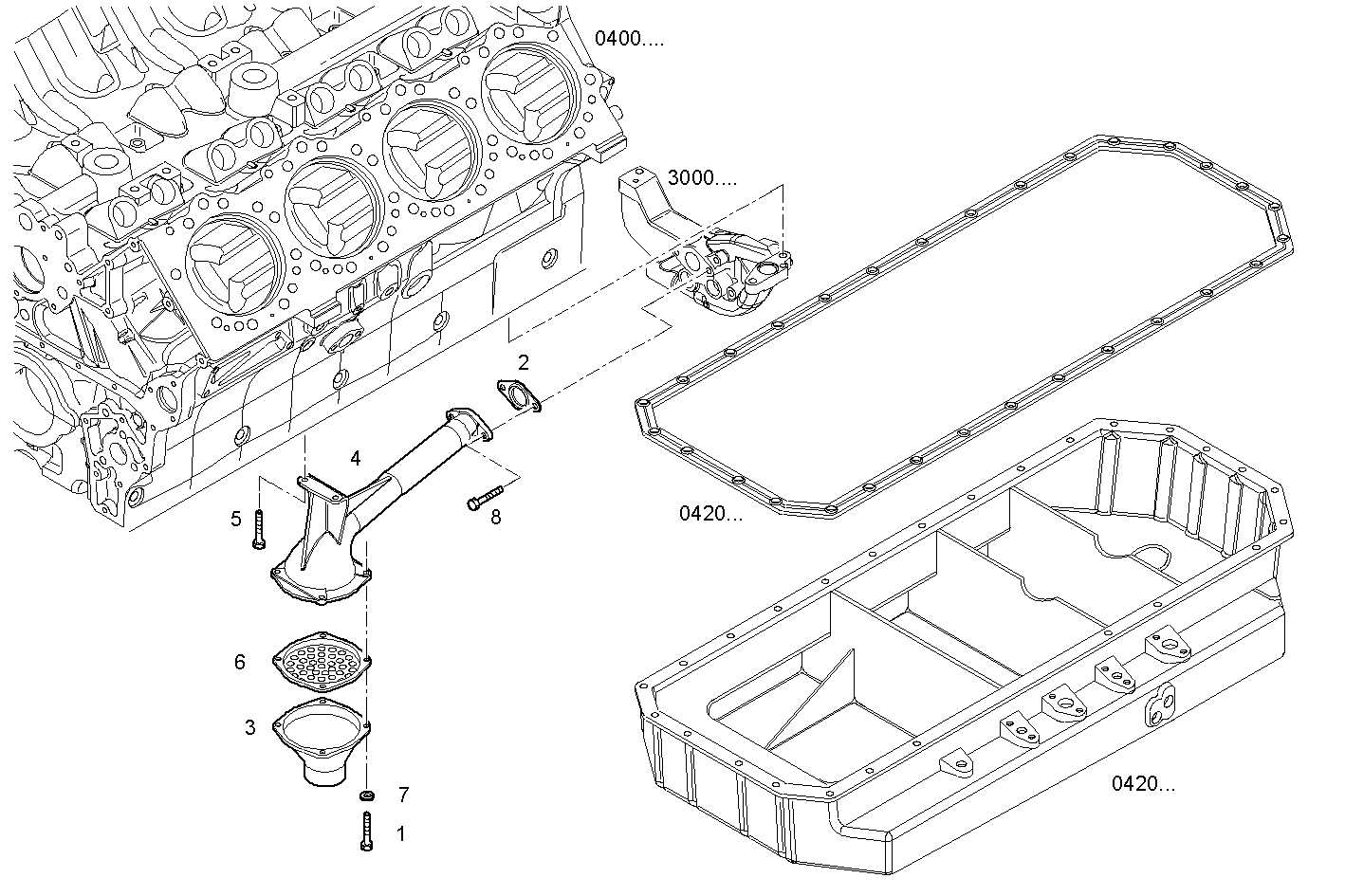

SUCTION STRAINER
V08ENTM75.10A210 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 2 | 504043473 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8040601 | COVER COVER | 1 | |
| 4 | 504036732 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 5 | 16592424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 4673581 | FILTER FILTER | 1 | |
| 7 | 17798274 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 16598224 | HEXAGON BOLT HEXAGON BOLT | 2 |
