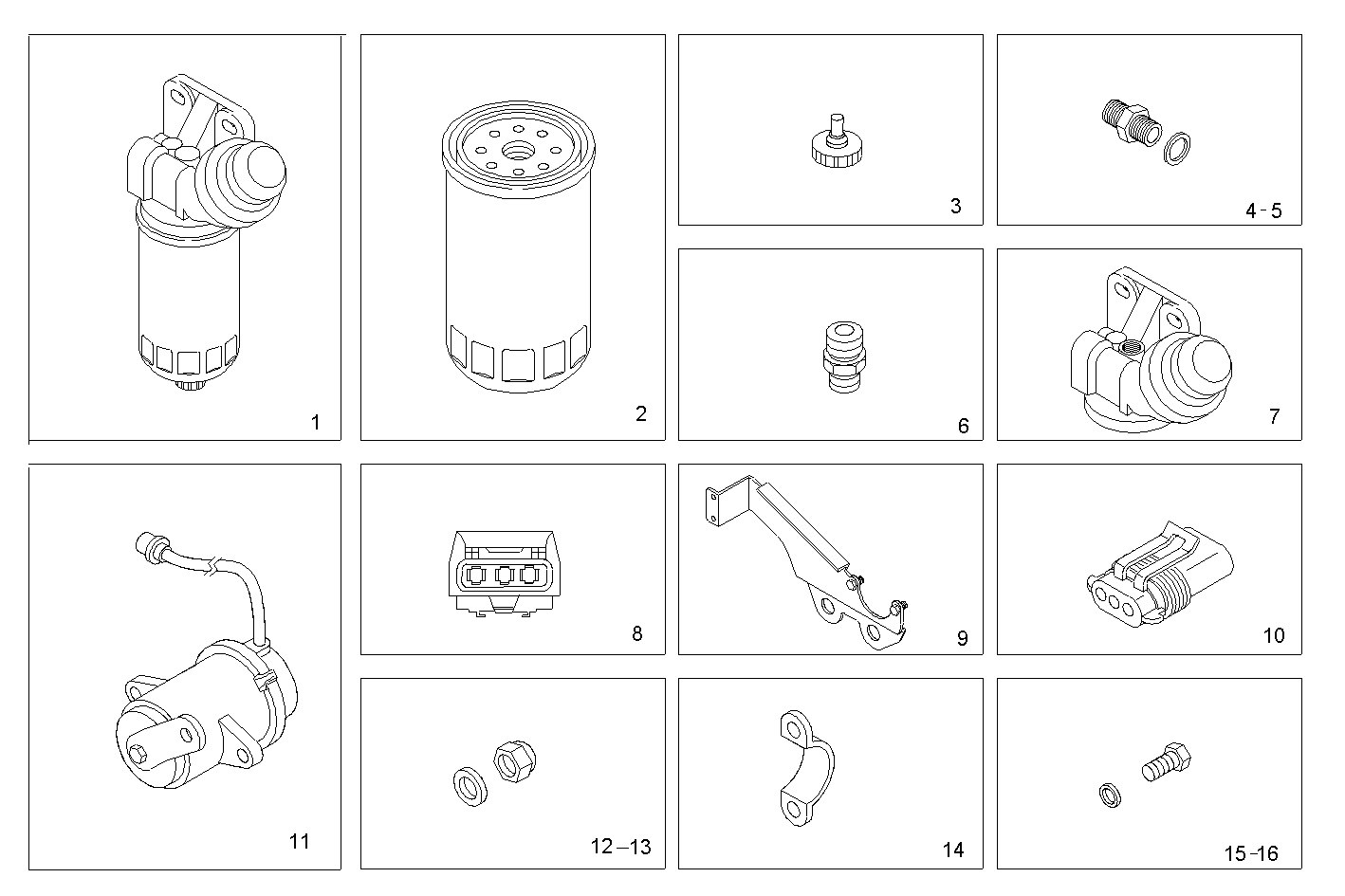

ACCESSORIES
V08ENTM75.10B230 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504057743 | PREFILTER PREFILTER | 1 | |
| 2 | 2992662 | FUEL FILTER ELEM. FUEL FILTER ELEM. | 1 | |
| 3 | 42540203 | SENSOR SENSOR | 1 | |
| 4 | 99489018 | SEAL GASKET SEAL GASKET | 2 | |
| 5 | 16500214 | THREADED UNION THREADED UNION | 2 | |
| 6 | 42545574 | THREADED UNION THREADED UNION | 1 | |
| 7 | 42545573 | FUEL FILT.SUPPORT FUEL FILT.SUPPORT | 1 | |
| 8 | 8030575 | CONNECTION CONNECTION | 1 | |
| 9 | 8036698 | SUPPORT SUPPORT | 1 | |
| 10 | 8033199 | CONNECTION CONNECTION | 1 | |
| 11 | 8040187 | ELECTRON.TRANSMITT ELECTRON.TRANSMITT | 1 | |
| 12 | 17088474 | WASHER WASHER | 2 | |
| 13 | 17787270 | HEXAGON NUT HEXAGON NUT | 2 | |
| 14 | 8033783 | RETAINER RETAINER | 1 | |
| 15 | 17800274 | SPRING WASHER SPRING WASHER | 2 | |
| 16 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 2 |
