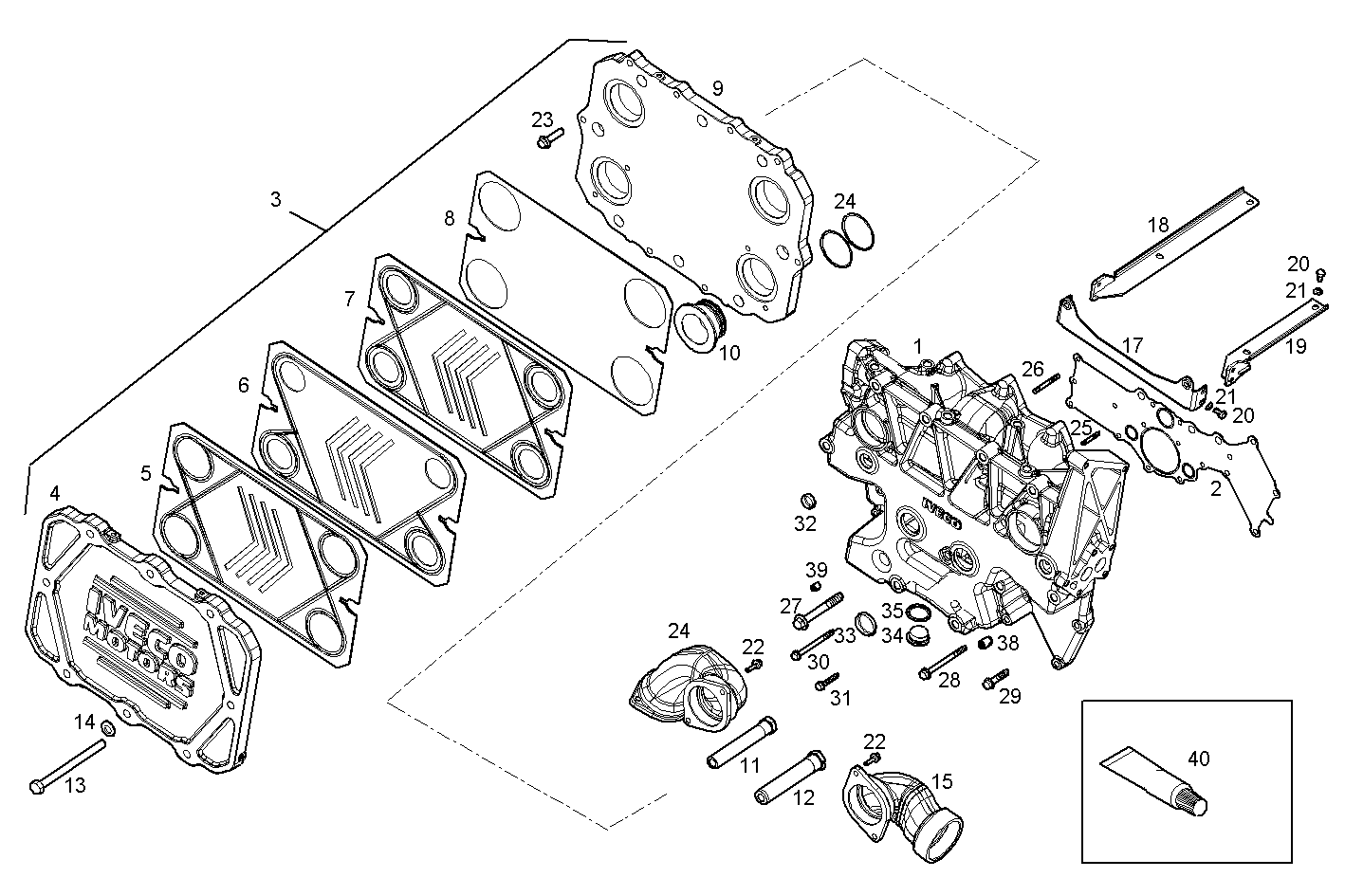

FRESH WATER - SEA WATER HEAT EXCHANGER
V08ENTM75.10B230 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040326 | SUPPORT SUPPORT | 1 | |
| 2 | 8042490 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8043119 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 4 | 8039153 | PLATE PLATE | 1 | |
| 5 | 8039950 | PLATE PLATE | 1 | |
| 6 | 8039192 | PLATE PLATE | 14 | |
| 7 | 8040290 | PLATE PLATE | 1 | |
| 8 | 8040874 | SPACING BAR SPACING BAR | 1 | |
| 9 | 8040875 | PLATE PLATE | 1 | |
| 10 | 8039157 | BUSH BUSH | 4 | |
| 11 | 8043121 | SPACING BAR SPACING BAR | 6 | |
| 12 | 8043122 | SPACING BAR SPACING BAR | 2 | |
| 13 | 8043123 | SCREW SCREW | 8 | |
| 14 | 17092174 | SPRING WASHER SPRING WASHER | 8 | |
| 15 | 8037759 | WATER PIPE WATER PIPE | 1 | |
| 16 | 8037760 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8040143 | RETAINER RETAINER | 1 | |
| 18 | 8040147 | RETAINER RETAINER | 1 | |
| 19 | 8040151 | RETAINER RETAINER | 1 | |
| 20 | 16605424 | SCREW SCREW | 8 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 22 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 23 | 16678235 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 24 | 17290581 | O-RING O-RING | 8 | |
| 25 | 16729624 | STUD STUD | 3 | |
| 26 | 16730024 | STUD STUD | 2 | |
| 27 | 16594024 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 28 | 16598924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 29 | 16587625 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 30 | 16598324 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 31 | 16586825 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 32 | 16990870 | LOCK PLUG LOCK PLUG | 4 | |
| 33 | 16991370 | LOCK PLUG LOCK PLUG | 4 | |
| 34 | 16993711 | THREADED PLUG THREADED PLUG | 2 | |
| 35 | 99469380 | SEAL GASKET SEAL GASKET | 2 | |
| 36 | 16994111 | PLUG PLUG | 2 | |
| 37 | 99489023 | SPRING WASHER SPRING WASHER | 2 | |
| 38 | 17873271 | THREADED INSERT THREADED INSERT | 23 | |
| 39 | 17873571 | THREADED INSERT THREADED INSERT | 14 | |
| 40 | 2992695 | ADHESIVE/STICKER ADHESIVE/STICKER | 1 |
