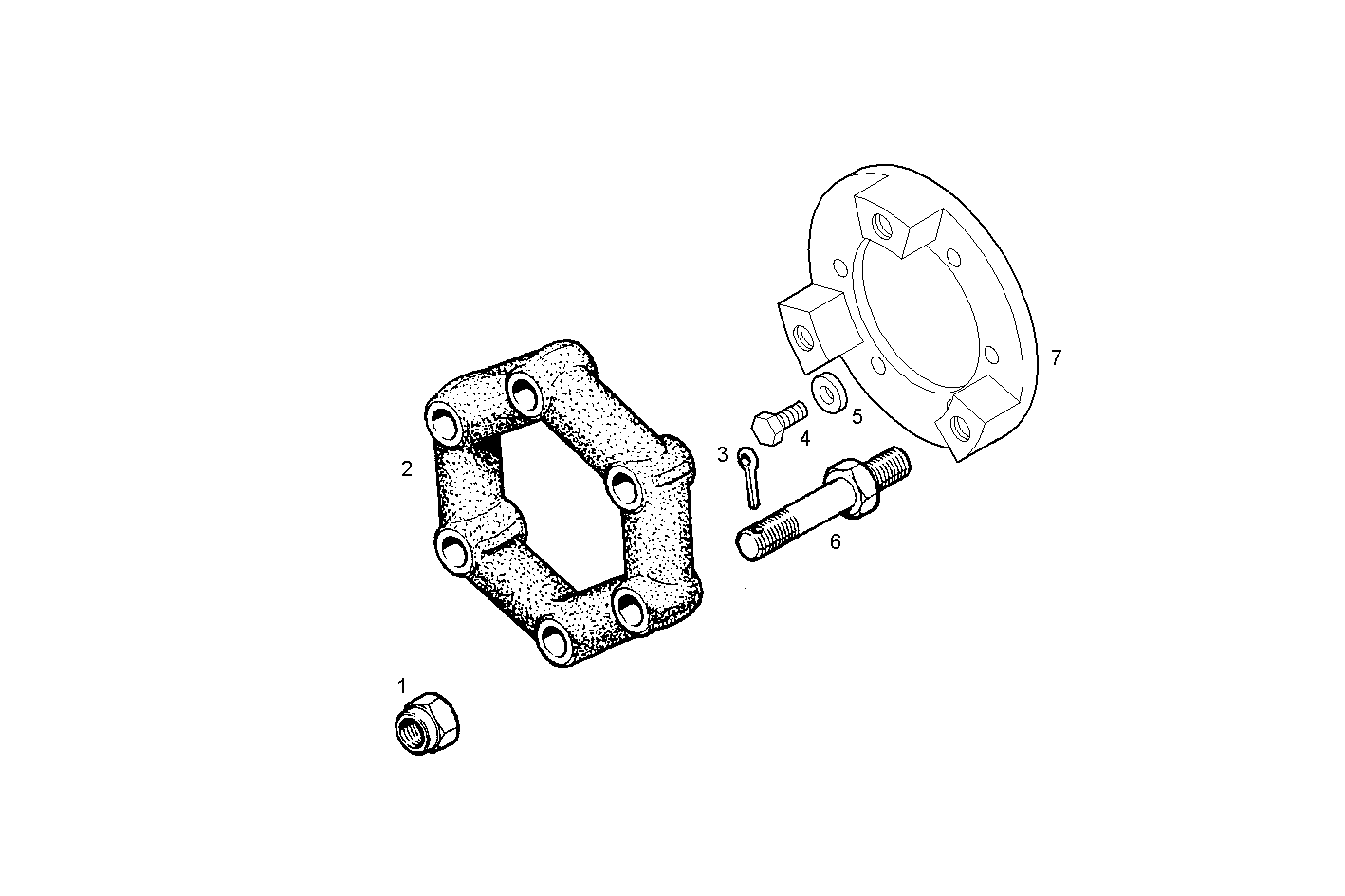

PULLEY ON ENGINE AXIS
V08ENTM75.10B230 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17068221 | NUT NUT | 8 | |
| 2 | 8104736 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 3 | 16858701 | SPLIT PIN SPLIT PIN | 4 | |
| 4 | 16681635 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17096050 | WASHER WASHER | 4 | |
| 6 | 8013406 | THREADED UNION THREADED UNION | 4 | |
| 7 | 8021179 | SPACING BAR SPACING BAR | 1 |
