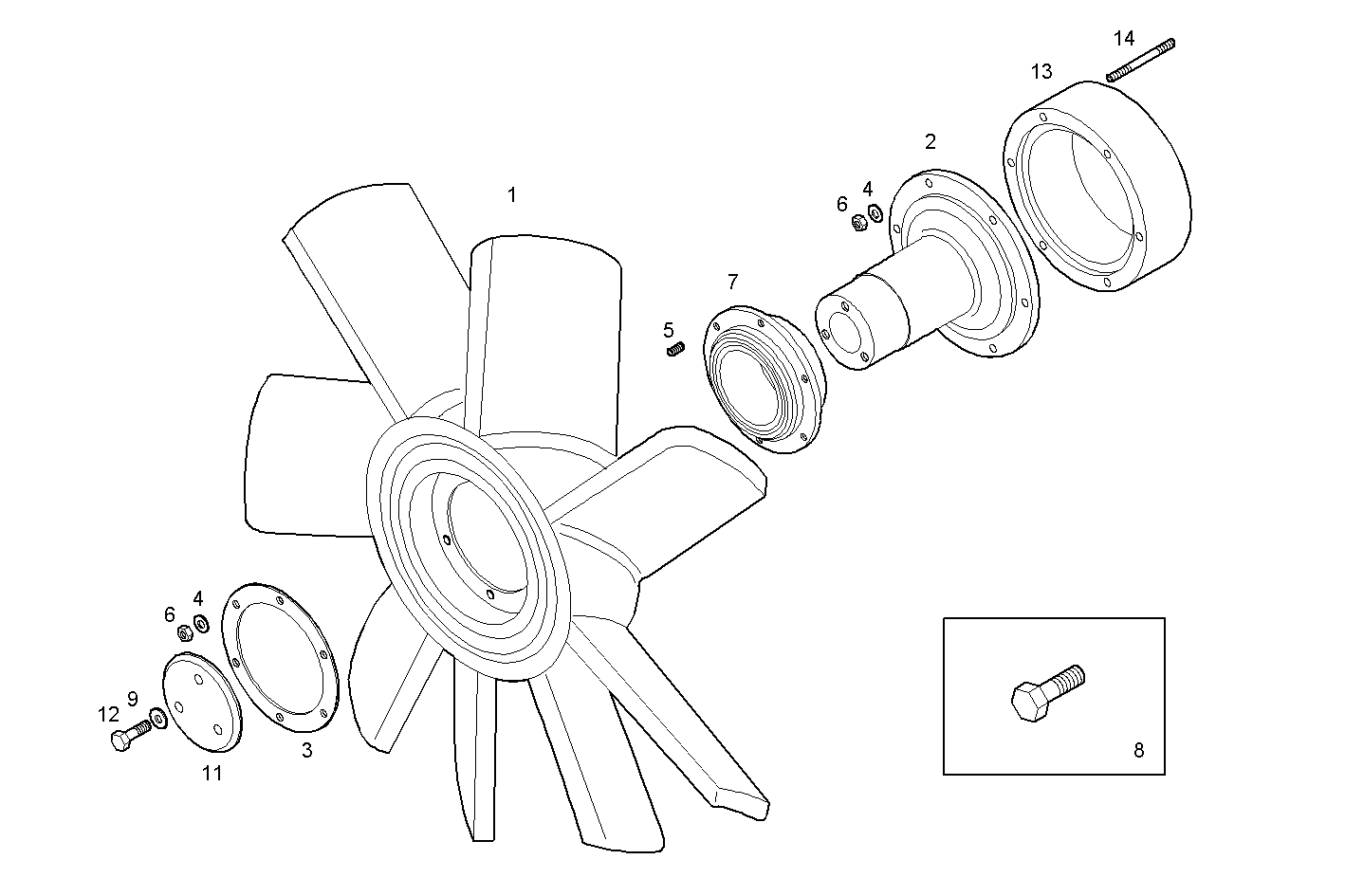

PUSHER FAN
VECTOR8TE2.A001 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504169687 | BLOWER BLOWER | 1 | |
| 2 | 8108874 | HUB HUB | 1 | |
| 3 | 4933279 | RING RING | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 16729224 | STUD STUD | 6 | |
| 6 | 17037925 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 8108850 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 8 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 17090074 | SPRING WASHER SPRING WASHER | 3 | |
| 11 | 8108876 | SPACING BAR SPACING BAR | 1 | |
| 12 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 504168811 | SPACING BAR SPACING BAR | 1 | |
| 14 | 16730524 | STUD STUD | 6 |
