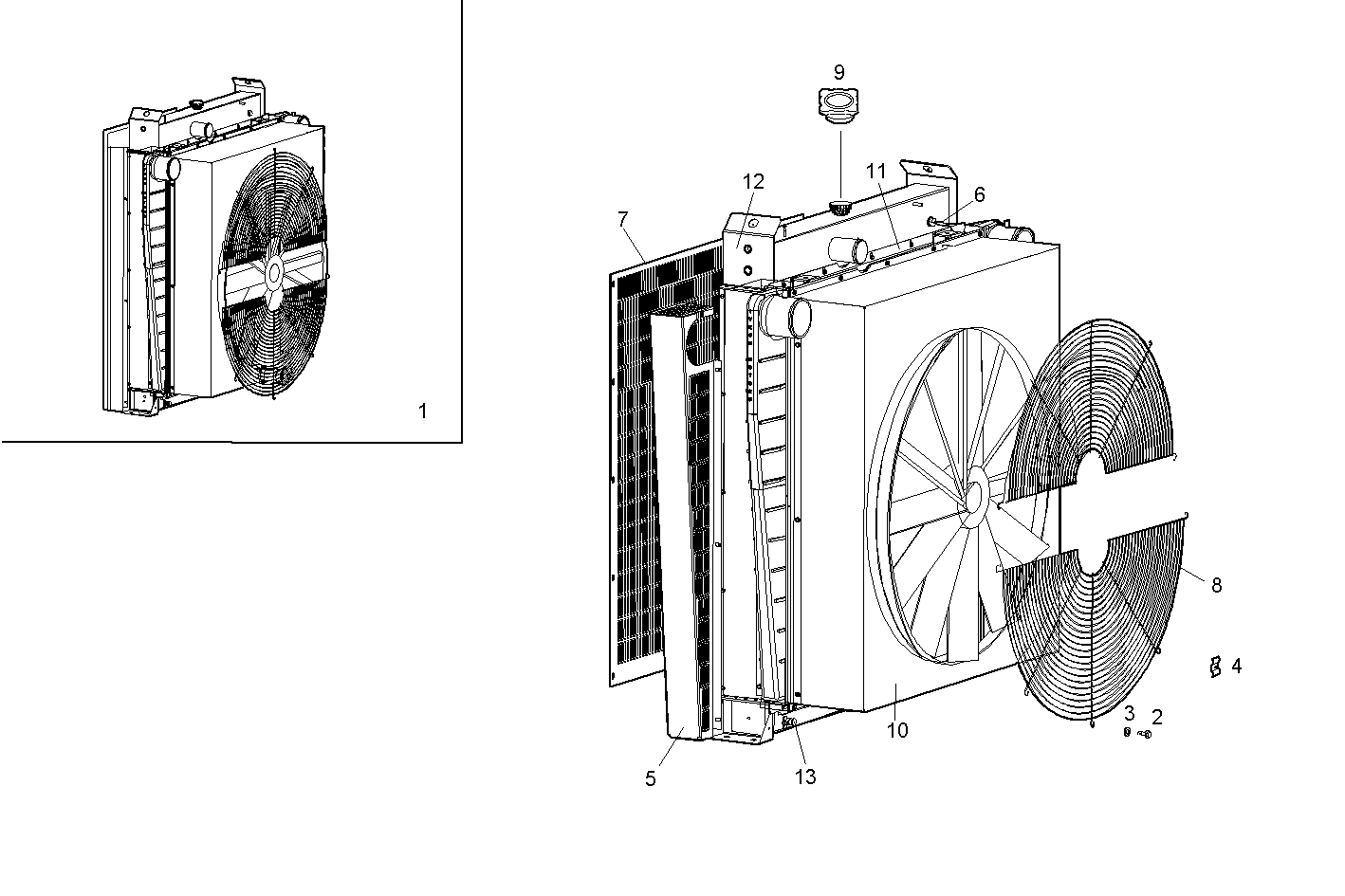

RADIATOR 2 CIRCUITS AIR/WATER
VECTOR8TE2.A001 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504172483 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 8 | |
| 4 | 8095047 | FASTENING BRACKET FASTENING BRACKET | 8 | |
| 5 | 8095042 | PROTECTION PROTECTION | 1 | |
| 6 | 8095038 | TRANSMITTER TRANSMITTER | 1 | |
| 7 | 8095040 | GRILLE GRILLE | 1 | |
| 8 | 8095039 | PROTECTION PROTECTION | 1 | |
| 9 | 8095041 | RADIATOR PLUG RADIATOR PLUG | 1 | |
| 10 | 8095045 | AIR HOOD AIR HOOD | 1 | |
| 11 | 8095044 | INTERCOOLER INTERCOOLER | 1 | |
| 12 | 8095043 | WATER RADIATOR WATER RADIATOR | 1 | |
| 13 | 8094858 | PLUG PLUG | 1 |
