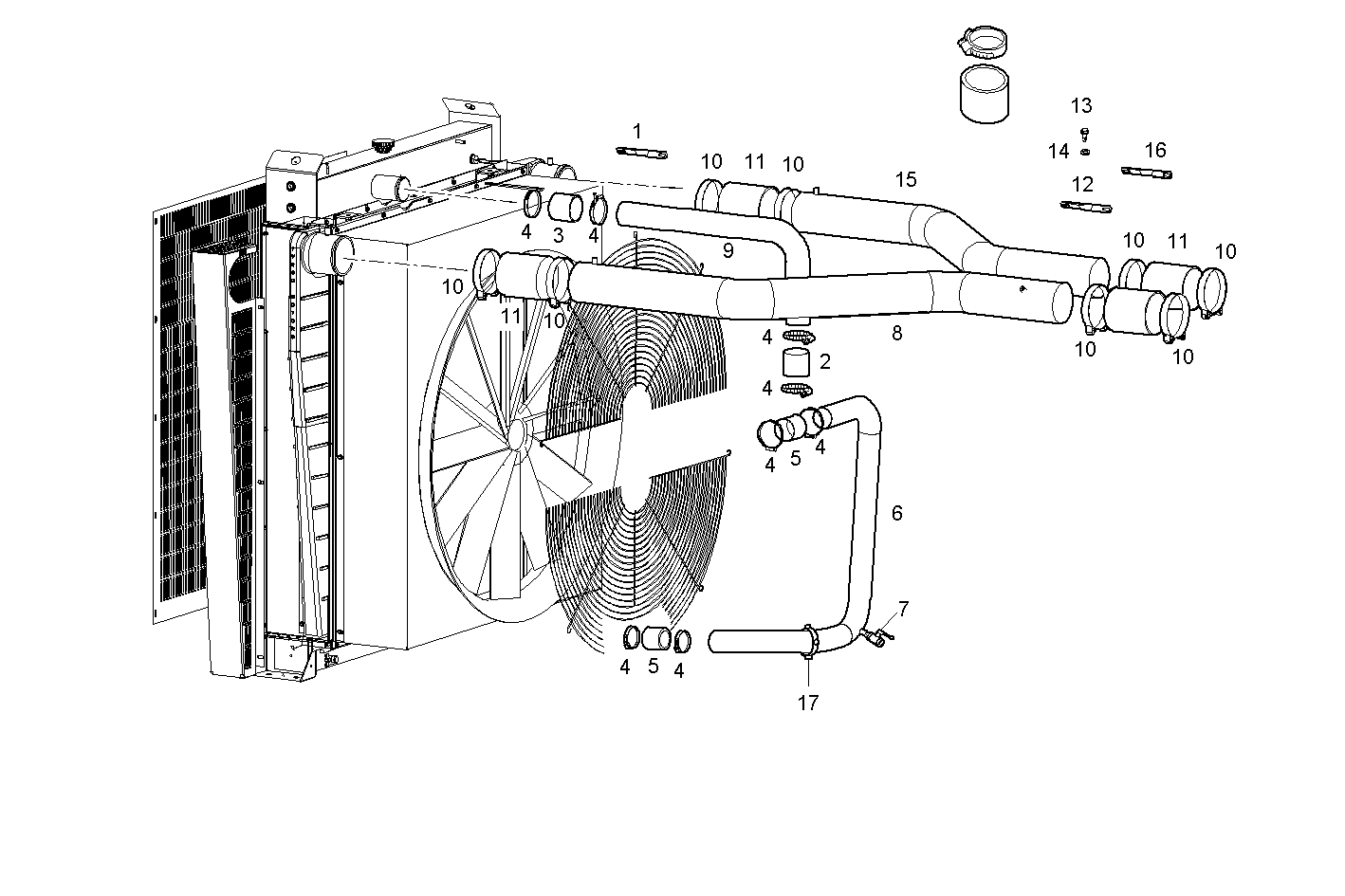

RADIATOR 2 CIRCUITS AIR/WATER
VECTOR8TE2.A001 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8095031 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 2 | 8095022 | WATER HOSE WATER HOSE | 1 | |
| 3 | 8095023 | WATER HOSE WATER HOSE | 1 | |
| 4 | 8095027 | CLIP CLIP | 8 | |
| 5 | 8095024 | WATER HOSE WATER HOSE | 2 | |
| 6 | 8095028 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8095037 | DRAIN COCK DRAIN COCK | 1 | |
| 8 | 8095029 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 9 | 8095026 | WATER PIPE WATER PIPE | 1 | |
| 10 | 8095030 | CLIP CLIP | 8 | |
| 11 | 8095025 | WATER HOSE WATER HOSE | 4 | |
| 12 | 8095032 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 13 | 16605424 | SCREW SCREW | 8 | |
| 14 | 17089574 | WASHER WASHER | 8 | |
| 15 | 8095033 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 16 | 8095034 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 17 | 8095036 | CLIP CLIP | 1 |
