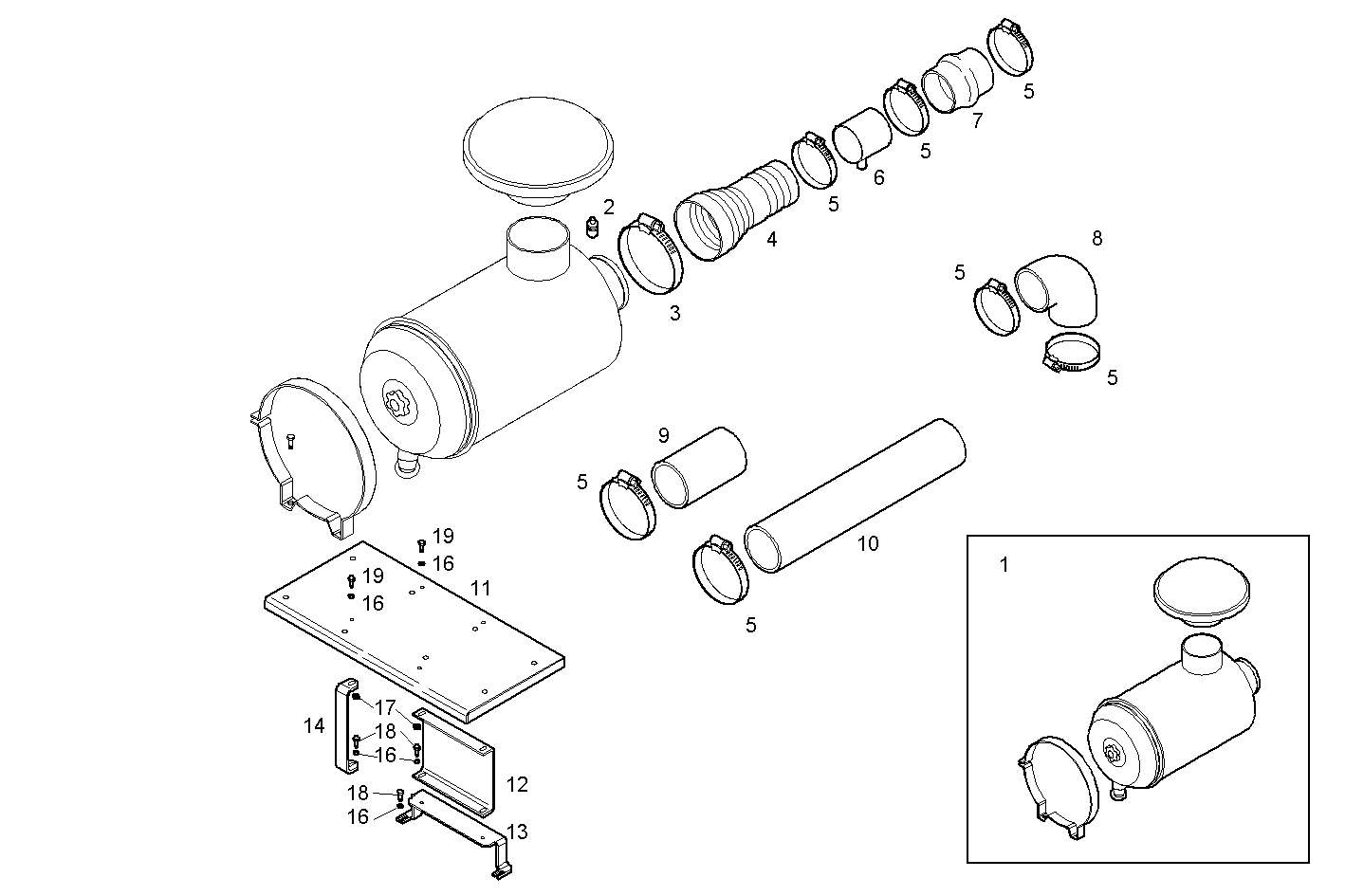

DRY AIR CLEANER
VECTOR8TE2.A002 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034707 | AIR CLEANER AIR CLEANER | 2 | |
| 2 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 2 | |
| 3 | 17765991 | CLIP CLIP | 2 | |
| 4 | 8018132 | FILTER HOSE FILTER HOSE | 2 | |
| 5 | 17765494 | CLIP CLIP | 14 | |
| 6 | 8019586 | AIR PIPE/DUCT AIR PIPE/DUCT | 2 | |
| 7 | 504182694 | PIPE PIPE | 2 | |
| 8 | 8027214 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 9 | 504182692 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 10 | 504182693 | HOSE HOSE | 2 | |
| 11 | 504171751 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 12 | 504171744 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 13 | 504171743 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 14 | 504171745 | FILTER SUPPORT FILTER SUPPORT | 2 | |
| 15 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17089574 | WASHER WASHER | 10 | |
| 17 | 17152821 | NUT NUT | 4 | |
| 18 | 16605424 | SCREW SCREW | 4 | |
| 19 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 |
