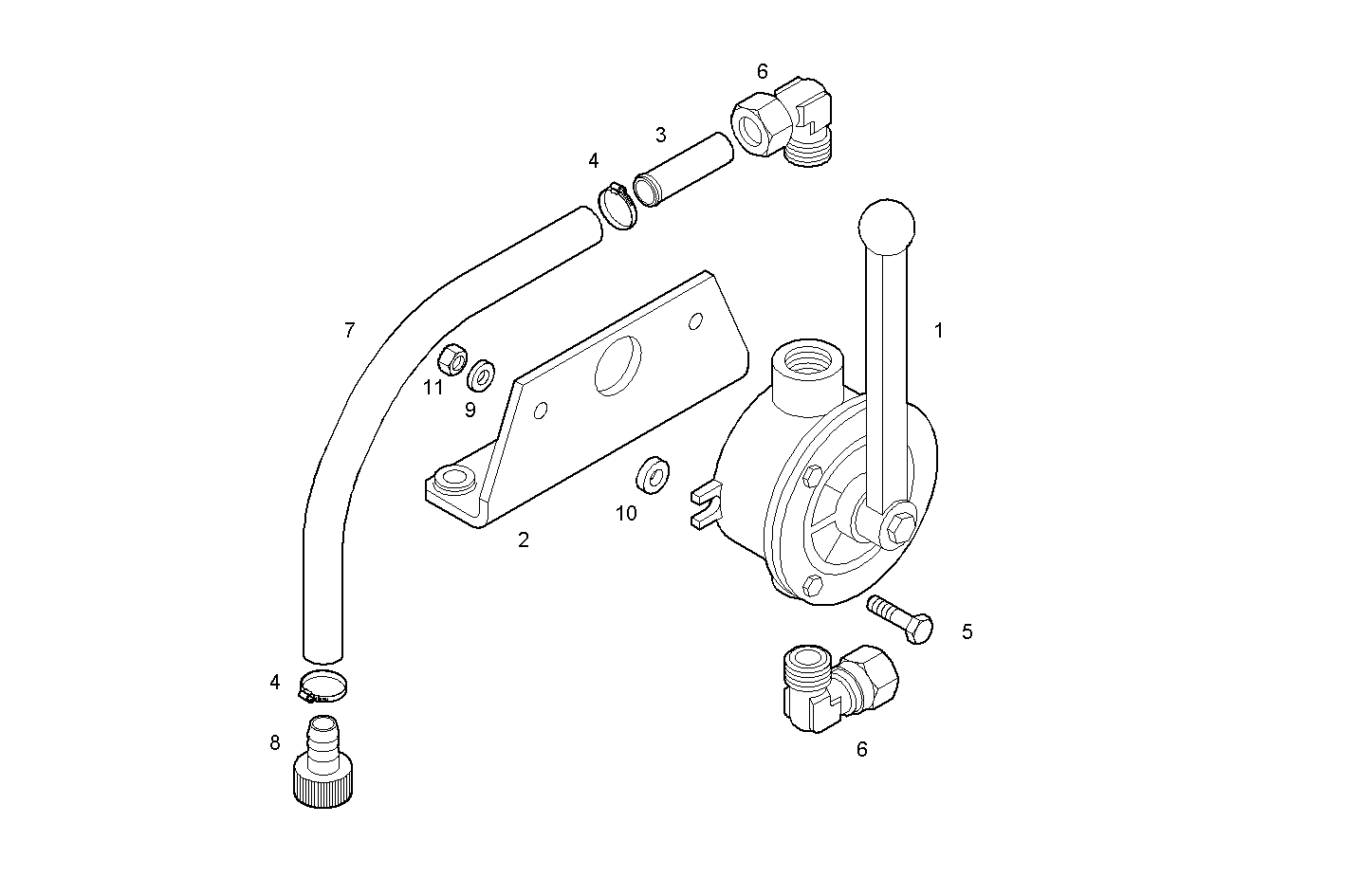

OIL OUTLET PUMP
VECTOR8TE2.A002 — VECTOR 8
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012424 | MAR. ENG. SUCTION PUMP MAR. ENG. SUCTION PUMP | 1 | |
| 2 | 8110727 | RETAINER RETAINER | 1 | |
| 3 | 8104754 | OIL LINE OIL LINE | 2 | |
| 4 | 18088392 | CLIP CLIP | 2 | |
| 5 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 8111456 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 8024459 | OIL HOSE OIL HOSE | 4 | |
| 8 | 503113365 | PIPE SOCKET PIPE SOCKET | 1 | |
| 9 | 17089574 | WASHER WASHER | 2 | |
| 10 | 17816014 | SPACING BAR SPACING BAR | 2 | |
| 11 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 |
